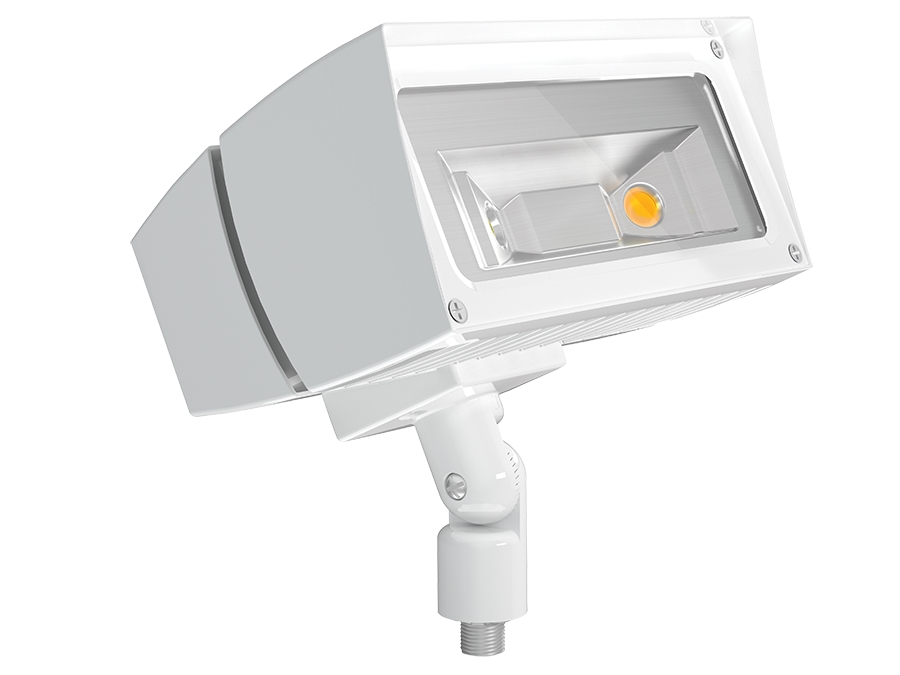

RAB FLOODLIGHT SWIVEL MOUNT 39W WHITE 150W MH EQUIVALENT

Description

Technical SpecificationsComplianceUL Listed:Suitable for wet locations. Suitable for mountingwithin 1.2m (4ft) of the ground.PerformanceLifespan:100,000-Hour LED lifespan based on IES LM-80results and TM-21 calculationsElectricalDriver:Constant Current, Class 2, 120-277V, 50-60Hz,120V: 0.35A, 208V: 0.23A, 240V: 0.13A, 277V:0.11ADimming Driver:Driver includes dimming control wiring for 0-10Vdimming systems. Requires separate 0-10V DCdimming circuit. Dims down to 10%.THD:10.18% at 120V, 18.18% at 277VPower Factor:99% at 120V, 91.4% at 277VNote:All values are typical (tolerance +/- 10%)ConstructionLens:Soda lime silica clear glassHousing:Die-cast aluminum housing, lens frame andmounting armMounting:Heavy-duty mounting arm with “O” ring seal &stainless steel screwIP Rating:Ingress Protection rating of IP66 for dust andwaterMaximum Ambient Temperature:Suitable for use in up to 40°C (104°F)Cold Weather Starting:Minimum starting temperature is -40°C (-40°F)Effective Projected Area:EPA = 0.65
