Description

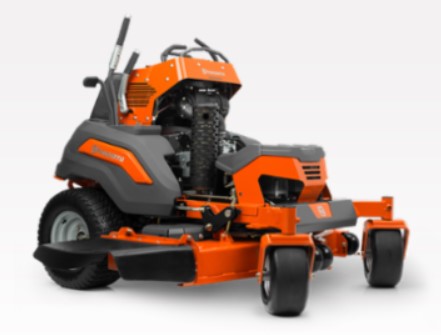

HUSQVARNA V548

The Husqvarna V500 series stand-on mower represents extreme efficiency in commercial mowing. With a compact footprint, landscapers can arrange more landscaping products on their truck or trailer. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver long lasting operation in any commercial application.

Commercial Warranty 3 Years
Battery capacity 150 Ah
Battery type Lead-Acid
Battery type Lead/Acid
Battery voltage 12 V
Cells per battery 6

Capacity
Cutting width 48 in / 122 cm
Productivity 3.7 acres/hr / 14973.4 m²/h
Speed forward max 11 mph / 17.7 km/h

Cutting deck
BioClip® kit Available as accessory
Anti-scalp wheels 3
Blade engagement Electromagnetic clutch
Blades 3 pcs
Clutch rating 200 ft.lb / 271.16 Nm
Cutting Height Max 5 in / 127 mm
Cutting deck material Steel
Cutting deck type 7-gauge fabricated
Cutting height adjustment Manual
Cutting height min 1 in / 25 mm
Cutting height steps 14
Cutting methods Collect/Mulch/Side discharge
Cutting width, max 48 in / 122 cm
Cutting width, min 48 in / 122 cm
Deck Wash Port No
Deck lifting system Manual, hand operated
Deck thickness 7 gauge / 4.76 mm
Greasable mandrels Yes
Nose roller Yes
Powder-coated cutting deck Yes
Spindle/mandrel type Cast iron

Dimensions
Base machine, height 48 in / 122 cm
Base machine, length 57 in / 145 cm
Base machine, width 119 cm
Base machine, width 47 in / 119 cm
Tyre dimensions, front 13″ x 6.5″
Tyre dimensions, rear 20″ x 10″
Wheel size, Front 13 in
Wheel size, Rear 20 in

Drive system
#Speed reverse min 0 km/h
#Speed reverse min 0 mph / 0 km/h
Drive method Lever-operatedDrive system Rear wheel drive
Fan-cooled pumps Yes
Pump displacement 12 cm³
Pump displacement 12 см³
Speed reverse max 6 mph / 9.7 km/h

Engine
Air filter type Dual element canister filter
Cylinder displacement 52 cu.inch / 852 cm³
Cylinder displacement 52 cu.inch / 852 см³
Cylinders 2
Engine cooling Air
Engine lubrication type Pressure
Engine name FX Series V-Twin
Fuel tank volume 7 gal (US)
Fuel tank volume 7 gal (US) / 26.5 l
Horsepower 24.5 hp / 18.3 kW
Motor/engine manufacturer Kawasaki
Oil capacity 81.2 fl oz / 2.4 l
Power output 24.5 hp
Power output 24.5 hp / 18.3 kW
Power/fuel type Gasoline
Equipment
#Armrests No
Blade brake clutch (BBC) Yes
Collector Available as accessory
Cup holder Yes
Handlebar-mounted gear selection No
Hour meter type Yes
Throttle control Yes
#Hinged armrests No
Deflector Included
Horizontally adjustable handlebar No
Oil cooler No
Parking brake, type Drum
Water hose connection No
Lubricant
Lubricant type (Engine) SAE 10 W-30

Transmission
Transmission manufacturer Parker
Transmission steps forward Infinite
Transmission steps reverse Infinite
Transmission type Pump/Wheel motor
