Description

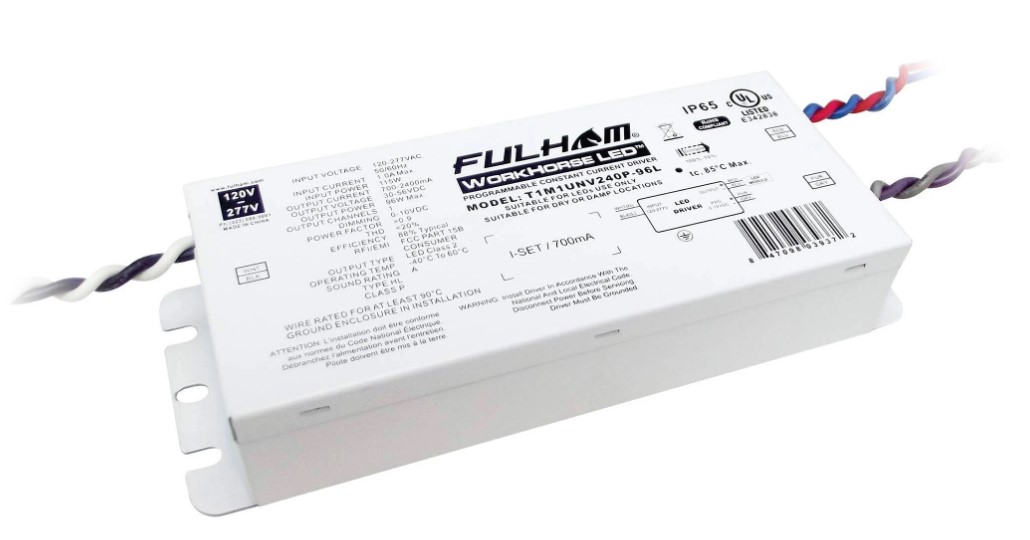

LED DRIVER 96W UNV.VT DIMMABLE

WorkHorse, LED Driver, Intended LED Usage Fixture Array, 120 to 277V AC Input Voltage, 30 to 56V DC Output Voltage, 1AAC Input Current, 700 to 2400mA Output Current, 115 W Input Power, 96W Power Output, 6 11/16 in Length, 2 9/16 in Width, 1 1/4 in Height, Case Form Factor Long, Standard Profile, Class 2

• Power Output: 96W
• Output Current: 700 to 2400mA
• Ballast Dimming: Yes
• Input Current: 1AAC
• Input Power: 115 W
• Output Voltage: 30 to 56V DC
• Input Voltage: 120 to 277V AC
• Ambient Temp. Range: -40 Degrees to 140 Degrees F
• Item: LED Driver
• Environmental Rating: Damp Location, Dry Location
• Height: 1 1/4 in
• Width: 2 9/16 in
• Power Factor: Greater Than 0.9
• Length: 6 11/16 in
• Case Form Factor: Long
• Total Harmonic Distortion: Less than 20%
• Intended LED Usage: Fixture Array
• Standards: UL Listed
• Output Technology: Programmable
• Max. Case Temp.: 185 Degrees F
• Dimming Type: Step Dimming
• Dimming Range: 100%/1%/0%
• Brand and Series: WorkHorse
• Driver Mounting Location: Universal
• For Use With: LED Lighting
• Dimming Method: 0-10V
• Ouput Constant: Constant Current
• Profile: Standard Profile
• Driver Class: Class 2
• Dimming: Yes
• Length (Straight Wireway): 6 11/16 in
• Product Type: LED Driver
