B&G BOOSTER PUMP 1/6 HP CAST IRON 102210

Be the first to review this product

SKU: 405168 UPC: 683328022109 Categories: PLUMBING, HEATING

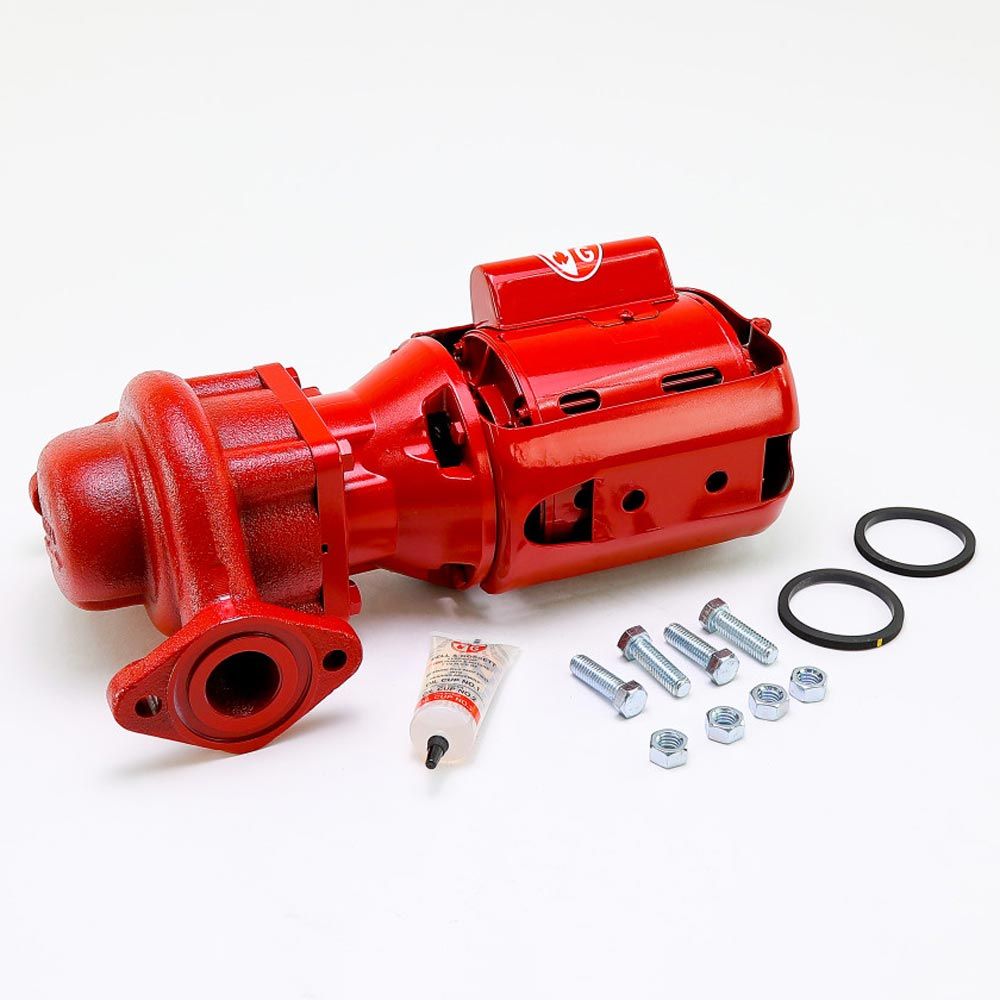

Bell & Gossett 102210 model HV-NFI cast iron booster pump with 1/6 hp, 1725 rpm, 115 voltage, single-phase, drip-proof motor. Series HV, in-line, three-piece oil-lubricated circulator pumps have two-bolt flanged connections that mount to 1″, 1-1/4″, or 1-1/2″ pipe connections.

Log in to see prices
or
Request A Quote
or
Buy Now

Description

More Information
Brand Bell & Gossett
MPN 102210
Pump Type Circulator
B&G Series Series HV
B&G Model HV NFI
Model HV-NFI
Pump Construction Cast Iron-NFI (Non-Ferrous Imp)
Pump Class Booster
Pump Mounting In-Line
Pump Connection Size 1″, 1-1/4″, 1-1/2″
Pump Connection Flanged
Flanges Included No
Motor HP 1/6 HP
Motor RPM 1725 RPM
Motor Voltage 115V
Motor Phase 1 Ph
Motor Hertz 60 Hz
Motor Enclosure ODP
Motor Frame Size Power Pack
Shaft Size 1/2″
Impeller Size 3-3/8″
Working Pressure 125 psi
Max Temp 225°F
Potable Water No
UPC 683328022109
Alias HV
Weight 29.24

Additional information

Weight 29.0000 lbs
Dimensions .00000 × .00000 × .00000 in
